Foreword

This Guide is designed to give the CallTower customer administrator a reference for preparing their network for the use of CallTower Complete for Microsoft Skype for Business. As a Unified Communications platform, Microsoft Skype for Business is a bandwidth intensive product that relies heavily on internal network setup and bandwidth to provide end users with a quality experience. While following these guidelines will better prepare your network for its use, CallTower cannot predict overall performance of the product across internal network connections, ports and firewalls due to the influence of user behavior on the network itself. Adhering to the guidance in this guide gives you and your organization a better opportunity to prepare and adjust your network to meet the needs of the product, allowing you to fully benefit from the robust feature set provided by Microsoft Skype for Business.

Current Network

The best starting place in determining if your network is ready to support Skype for Business is with the network itself. There are several pieces of information that you will want to gather to begin your assessment.



First, you should define the following about your current network:

  • Define primary use of the network
  • Describe the enterprise including user locations, site definitions and connectivity between sites.
  • Obtain or design Network and Connectivity Diagrams showing all sites (including remote) and user counts, connectivity between sites, connectivity to the internet and associated bandwidth for all such connectivity.
  • Define the predominant transport protocol in use today
  • Is VPN being utilized across sites or internally?
  • Define internet security and firewall/access list management
  • What system is in use today for email?
  • How is that email connected to the network?
  • Connectivity to the internet and ISP definition
  • Define all network hardware in use or planned for, including routers, switches, firewalls and cabling
  • Define your Network Monitoring procedures
  • What network tools are used?
  • Define Network Redundancy

Record this information for later use in determining network changes and optimization as determined by usage modeling, bandwidth and firewall configuration later in this document.

Some immediate takeaways that can be determined for this initial analysis would be in the area of equipment in use. If you are running unmanaged switches, less than cat 5 cabling, less than 100Mb internal network, or firewalls that are not easily configurable, these items will likely need to be addresses before successful deployment.

Understanding Usage/Personas

Before we can begin determining the bandwidth needs, we must first understand who is going to be using the product, and how. Determining personas that can be allocated to your enterprise users, along with persona usage models, can help to define bandwidth needs for your organization.

Modeling/Personas

The definition of a persona is the process of analyzing existing usage data, and then using this data to calculate the potential load on a new system.

Usage scenarios describe different ways that users communicate by using Skype for Business. For instance, a peer-to-peer audio call or a video conference are examples of usage scenarios.

A usage model represents a collection of data associated with specific users, which can help you customize and adapt a new system to your users’ specific needs. For example, the usage model that is associated with public switched telephone network (PSTN) calling defines "Medium" users, or users in the medium usage category, as having a maximum of 10 percent concurrent calls to PSTN at your organization’s busiest time.

A persona is a logical grouping of users based on the behavior that they exhibit when using a specific functionality. For example, a group of users may have "Medium" PSTN calling patterns, but “High” video conference usage. Another group of users may have no video usage scenarios at all. In practice we typically see four to five unique personas.

To begin the process of usage modeling, you should ask a number of general questions:

  • How many site locations are there?
  • How many users are at each site location?
  • How many users will always be remote?
  • What are the future growth estimates?
  • What sort of WAN technology/topology is deployed?
  • What is your overall WAN link speed?
  • What is the maximum/current available bandwidth for Skype for Business traffic per WAN link?



A key ingredient in defining personas is to review the existing private branch exchanges (PBXs) or real-time communications system infrastructure capacity. This data helps to validate any personas and usage models that you create. It also helps to indicate any future capacity planning requirements for Skype for Business. Evaluate the following information, if available, for usage modeling:

  • Number of users at each location.
  • Call data records (CDRs) for PSTN traffic usage.



Usage statistics, such as the maximum number of concurrent calls during the busy hour.

The collected information helps you validate the models that you’ll use for estimating two of the three major call flows—concurrent PSTN calls and peer-to-peer calls.

Data Collection to Validate Models for Estimating Call Flows

Additionally, if an existing dial-in conferencing provider provides audio-conferencing services, you can probably access detailed usage reports used as part of the billing process. This usage data is valuable as a tool to help you adjust personas and usage models for actual historical usage statistics regarding general conferencing behavior.



Collect the following information:

  • Current location of the conference bridge in use. Although this is not directly relevant for the usage modeling, you’ll need to know whether the conferencing media flow patterns will be changing on the network. Because conference traffic volumes are significant, changing the location of the conference bridge can affect network planning and design.
  • Maximum number of conferencing ports used.
  • Peak conferencing usage in the last 12 months.
  • Average maximum number of concurrent conferences, including the number of participants when that maximum occurs.
  • Average meeting size.
  • Average meeting duration.
  • Total minutes of conferencing used per day and per month.
  • If available, how many internal users versus external users joined the conference bridge.



You’ll need similar information for any video conferencing systems in the infrastructure. Pay specific attention to the desktop video endpoints and codecs in use, and be sure to ask these questions:



  • What is the maximum video resolution for executive video conferences: HD or VGA?
  • What is the base video quality to be used: VGA or CIF?
  • Do you plan to integrate with Skype for Business ?



When defining personas, the fewer assumptions that you make about the potential usage of the new system, the more accurate your bandwidth and capacity calculations will be. The default persona definition should assume that users will use all Skype for Business modalities with a Medium usage model. Using this approach helps to ensure that you can turn off modalities in your modeling to reduce traffic volumes, rather than being surprised by an omission later in the process.



We previously described a persona as a logical group of users who behave in a similar manner when using a specific functionality. The Calculating Skype for Business bandwidth should include usage models for each of the following usage scenarios:



  • Maximum concurrency of x% of the user base using instant messaging and presence
  • Maximum concurrency of x% of the user base using peer-to-peer audio
  • Maximum concurrency of x% of the user base using peer-to-peer video
  • Maximum concurrency of x% of the user base using audio conferencing
  • Maximum concurrency of x% of the user base using video conferencing
  • Maximum concurrency of x% of the user base using desktop sharing
  • Maximum concurrency of x% of the user base using PSTN audio
  • Maximum concurrency of x% of the user base working remotely


This usage model can then be adjusted, based on how you anticipate your users behaving, and on historical usage statistics from existing systems.



Some sample personas are listed below using the usage models defined here:

Modality               None    Low  Medium   High

IM/Presence

0%

65.00%

80.00%

90.00%

Inter-site user-to-user audio

0%

0.50%

1.50%

2.50%

Inter-site user-to-user video

0%

0.10%

0.30%

0.50%

Conference audio

0%

1.00%

3.00%

5.00%

Conference video

0%

0.10%

0.50%

1.00%

Desktop share

0%

0.50%

1.00%

1.50%

PSTN audio

0%

5.00%

10.00%

15.00%



Profile 1: Desktop Information Worker



Client

Skype for Business (Lync)

IM/Presence

Medium

Inter-site user-to-user audio

Medium

Inter-site user-to-user video

Medium

Conference audio

Medium

Conference video

Medium

Desktop share

Medium

PSTN audio

Medium

Remote users

10%





Profile 2: Remote Information Worker



Client

Skype for Business (Lync)

IM/Presence

Medium

Inter-site user-to-user audio

Medium

Inter-site user-to-user video

Medium

Conference audio

Medium

Conference video

Medium



Desktop share

Medium

PSTN audio

Medium

Remote users

90%





Profile 3: Shop / Retail Floor Worker



Client

Skype for Business (Lync) Phone Edition

IM/Presence

None

Inter-site user-to-user audio

Low

Inter-site user-to-user video

None

Conference audio

Low

Conference video

None

Desktop share

None

PSTN audio

Medium

Remote users

0%



You can use overall usage modeling and user personas for future capacity planning in Skype for Business and other infrastructures. After you’re in production, the data on system usage becomes available through the Skype for Business Server Monitoring and Reporting feature. You can then use this data to validate the accuracy of your original personas and bandwidth estimations, and to predict future requirements.

Bandwidth Estimation

What is the potential impact of Skype for Business on your network?



Bandwidth estimation is the key consideration when deploying. Actually, network estimation would be a more apt term, because the communication streams within Skype for Business rely more on latency and packet loss than they do on raw available network bandwidth. To understand the role of network estimation, you must also recognize the various communication flows within Skype for Business.

Call Flows

Within any IP-based unified communications (UC) solution, there are certain characteristic call- flow scenarios that affect traffic modeling results and traffic simulation. Scenarios include peer- to-peer calls, conference calls, and PSTN/PBX calls. Each scenario has different media paths, and must be modeled and or simulated to determine future load requirements. There are other call-flow scenarios within the UC solution—specifically, those of remote users or federated communications. The following scenarios focus on planning for enterprise environments and managed networks.



Peer-to-Peer Session



  • A peer-to-peer call is any communication session between two UC endpoints, using any modality.
  • These calls originate and terminate on UC endpoints within the corporate network.
  • A peer-to-peer session is characterized by call control signaling that is relayed centrally through the UC infrastructure, and the real-time media is exchanged directly between the two endpoints.



Conference Session



  • A conference call is a communication session that originates on a UC endpoint, and terminates on the Skype for Business Server Pool (by default) that hosts the audio/video (A/V) conferencing service.
  • During a conference, multiple sessions will terminate on the A/V conferencing service.
  • The characteristic of a conference call consists of the media being exchanged between the UC endpoint and the A/V conferencing service.



PSTN/Mediation Server Session



  • Within the context of a Microsoft UC system, a PSTN call is any communication session that originates on a UC endpoint and terminates on a Skype for Business server role called a Mediation Server for onward relay to a PSTN gateway.



Content Sharing



During Skype for Business peer-to-peer and conference sessions, it is possible to share the entire desktop, or, more efficiently, the individual application being referenced. When desktop or application sharing is initiated, Skype for Business will use the Remote Desktop Protocol (RDP) protocol built into the host operating system. This is a TCP connection- based protocol that resends packets that are lost.

It is very difficult to predict the effect of RDP on the network because, by nature, it is a protocol characterized by frequent bursts, and it depends heavily on how often the shared desktop or application image is updated.



See the following table to estimate the range of figures for expected bandwidths.



RDP Bandwidth Estimations



Screen Size

Acceptable

Optimal

1280x800

384 Kbps

1.5 Mbps

1440x900

512 Kbps

2 Mbps

1680x1050

768 Kbps

2.75 Mbps

1920x1200

1 Mbps

3.5 Mbps

Note:  To improve the experience of Sharing in the Microsoft PowerPoint presentation graphics program on Skype for Business Server , an Office Web Application Server handles PowerPoint presentations by using dynamic HTML and JavaScript.



Bandwidth Tables



The following tables describe the bandwidth used by the Skype for Business Server media stack. At the most general level, the numbers are as follows:



Network Bandwidth Requirements for Skype for Business

Modality

Description

Maximum bandwidth

Typical bandwidth

IM, presence, and signaling

Nonmedia elements

2 Kbps

1.6 Kbps

Voice

Default = RTAudio Wideband

62 Kbps

39 Kbps

Conference voice

Default = G.722

100.6 Kbps

46.1 Kbps

Video - small

Uses H.264 at 320x180

250 Kbps

200 Kbps

Video - medium

Uses H.264 at 640x480

800 Kbps

640 Kbps

Video - high

Uses H.264 at 1280x1080

4 Mbps

3.2 Mbps



Audio Codec Bandwidth

Audio codec

Scenarios

Maximum bandwidth (Kbps)

Typical bandwidth (Kbps)

RTAudio Wideband

Peer-to-peer, default codec

62

39.8

RTAudio Narrowband

Peer-to-peer, PSTN

44.8

30.9

G.722

Default conferencing codec

100.6

46.1

G.722 Stereo

Peer-to-peer, Conferencing

159

73.1

G.711

PSTN

97

64.8

Siren

Conferencing

52.6

25.5

SILK Wideband

Peer-to-peer

36.0

52.0

SILK Wideband

Peer-to-peer

26.0

42.0

SILK Wideband

Peer-to-peer

20.0

36.0

SILK wideband/ narrowband

Peer-to-peer

13.0

29.0



Bandwidth includes IP header, UDP header, RTP header, and SRTP headers. The stereo version of the G.722 codec is used by systems that are based on the Skype for Business Server Meeting Room Edition, which enables stereo microphone capture so that listeners to can more easily distinguish between multiple talkers in the meeting room.



Video Resolution Bandwidth



The following table shows video resolution bandwidth values.

Video Resolution Bandwidth



Video codec

Resolution and aspect ratio

Maximum video payload bit rate (Kbps)

Minimum video payload bit rate (Kbps)

Typical bit rate (Kbps)

H.264

320x180 (16:9)

212x160 (4:3)

250

15

200

H.264/RTVideo

424x240 (16:9))

320x240 (4:3

350

100

280

H.264

480x270 (16:9)

424x320 (4:3)

450

200

350

H.264/RTVideo

640x360 (16:9)

640x480 (4:3)

800

300

640

H.264

848x480 (16:9)

1500

400

1200

H.264

960x540 (16:9)

2000

500

1600

H.264/RTVideo

1280x720 (16:9)

2500

700

2000

H.264

1920x1080 (16:9)

4000

500

3200

H.264/RTVideo

960x144 (20:3)

500

15

400

H.264

1280x192 (20:3)

1000

250



H.264

1920x288 (20:3)

2000

500





Note: Endpoints do not stream audio or video packets continuously. Depending on the scenario, there are different levels of stream activity that indicate how often packets are sent for a stream. The activity level of a stream depends on the media and the scenario, and does not depend on the codec that is used. In a peer-to-peer scenario:



  • Endpoints send audio streams only when the users speak.
  • Both participants receive audio streams.





If video is used, both endpoints send and receive video streams during the entire call.

For video scenes with little or no movement, the actual bit rate may temporarily be very low, because the video codec skips encoding regions of the video with no changes.





Impact of Multiple Video Streams in Skype for Business Server

A feature in Skype for Business conferences displays up to five simultaneous video streams, and potentially a sixth, if the panoramic video option is used. By default, the video streams show the current and past four active speakers, but this can be changed by the user to select any five feeds from within the gallery view, as shown in the following figure.

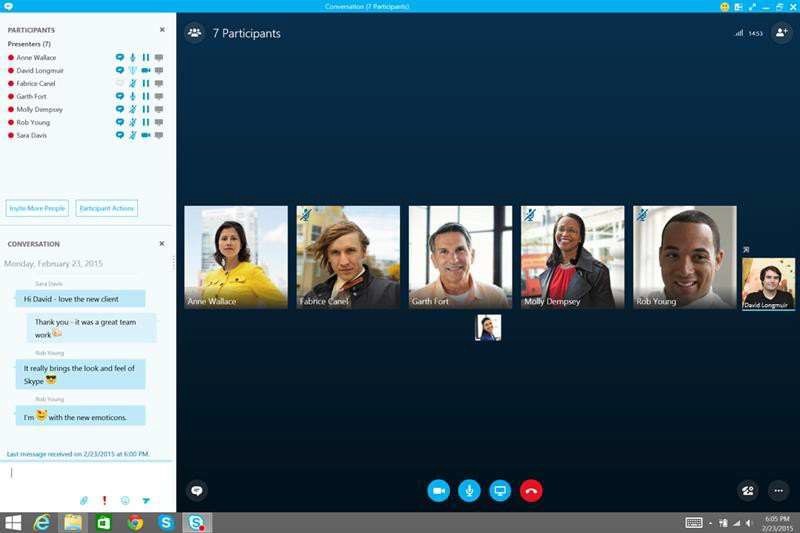

Skype for Business Server Conference Gallery View with Five Simultaneous Video Streams

The five larger windows show the live video feeds. The medium window is a video preview of the user, and the pictures underneath are static images of other meeting attendees that can be selected to be one of the five video feeds.

The typical stream bandwidth for panoramic video is based on currently available devices that stream only up to 960x144 panoramic video. After devices with 1920.x.288 panoramic video become available, the typical stream bandwidth is expected to increase.

Audio Capacity Planning for PSTN

The following table shows the network bandwidth numbers that indicate audio capacity planning for a public switched telephone network (PSTN).

Bandwidth Values for Audio Capacity Planning for PSTN



Media codec

Typical stream bandwidth (Kbps)

Maximum stream bandwidth

G.711

64.8

97

RTAudio Narrowband

30.9

44.8



The network bandwidth numbers in all preceding tables represent one-way traffic only, and include 5 Kbps for RTCP traffic overhead for each stream.



For all bandwidth tables, sites with fewer than 100 users should always use the maximum figures in network planning because, statistically, the network peaks for Skype for Business occur more frequently. Skype for Business depends entirely on the underlying network for the user-perceived quality of its communications, particularly voice.

General Bandwidth Guidelines

Because bandwidth plays the biggest factor in a successful and quality user experience, you can never have too much. Given all the varying codecs and bandwidths described above, determining exact needs is very difficult to do as well.

CallTower recommends 500kbps per concurrent Skype for Business session as a base starting point for determining bandwidth needs. Concurrency in the Skype for Business  world is different from the traditional 8 to 1 trunking ratio that is regularly applied to PSTN calling. As Skype for Business (Lync) uses the same network and bandwidth for internal, as well as PSTN, calls, video, conferencing and IM/Presence, utilizing the usage and persona models above will better provide you with information needed to determine bandwidth needs. If CallTower is providing your bandwidth, we will do these calculations for you prior to ordering your connectivity.

A more precise bandwidth calculation can be made by utilizing the Microsoft Provided Bandwidth Calculator available through this hyperlink, which utilizes personas, usage, sites and user counts to determine needs. At a minimum, regardless of user count, CallTower recommends a minimum of 5Mbps up and down at each site. Additionally, be sure to run some ping tests back to the CallTower Gateways (IPs 67.213.189.26 and 67.213.189.29) to test latency. RTT should be below 150ms to prevent jitter and packet loss.

Deploying Skype for Business and Network Adjustments

Now that general network, bandwidth and usage is determined, we need to get your network ready for using Skype for Business in production. This means that changes will likely need to be made to the network to accommodate the traffic that will be flowing in and out of your network through Skype for Business.

Internet/ISP connectivity

After determining the amount of bandwidth needed to support the full featured functionality of the product in your organization, it is important to use the right type of bandwidth for the product. CallTower has found that, while standard broadband connections can work in smaller deployments, most organizations will need more than just a cable modem or DSL connection to meet their needs.

Typical broadband does not guarantee bandwidth, but provides you with a max rate at which you might be able to use the bandwidth. A Cable modem, for instance, might have a 50 download, 10 upload connection, but that is shared bandwidth that bursts to those higher speeds when no one else is utilizing the same pipe. They provide an “up to” measurement for your service. When dealing with Real Time communication that relies on your bandwidth, you need to be able to rely on the bandwidth being there.

CallTower recommends using a guaranteed bandwidth, true internet connection that utilizes symmetric architecture. This means that both your download and your upload speeds are the same (such as 50/50 or 100/100). This type of internet connection will also provide you an MRTG view of the bandwidth utilization so you can monitor how much you use and how often you saturate that bandwidth. This allows you to make adjustments to your network based on factual usage data to provide the best overall experience to your users.

While CallTower can provide dedicated circuits for our Skype for Business product, if you have a solid, true internet connection with enough bandwidth as determined by exercises above, you can have wonderful user experience utilizing your existing connection. Remember, true symmetrical internet is good for Skype for Business. Commercial broadband, however, is not.

Router SIP Inspection

If your router is not configured for the new traffic protocols that Skype for Business will introduce to your network, you could experience packet loss, dropped calls and jitter. You must make sure that SIP inspection or SIP ALG (Application level gateway) are disabled on your routers and firewalls to prevent this from happening. You may need to contact your ISP to have this done, but make sure this is completed prior to deployment. These features in routers are intended to block SIP traffic and will interfere with Skype for Business communications.

Firewall Configuration

Because CallTower’s product is not housed in your internal network and IP setup, you will need to make sure that traffic traversing the firewall to CallTower’s Skype for Business Servers does not get blocked. You will need to add exceptions to the firewall for all Skype for Business server IP addresses and allow for IPs and ports listed below. Note the tables below indicate a different set of IP addresses for each pool that CallTower operates. Your CallTower Implementation Project Manager or Support representative can tell you which pool hosts your Skype for Business services.

NOTE: CallTower reserves the right to move customers between pools at any time and to add and remove servers from pools at any time. Because of this, we very strongly recommend that instead of whitelisting specific IP addresses and ports indicated below, you whitelist the entire IP ranges 67.213.189.0/24 and 63.128.106.128/26 Visit this link for the most updated Firewall Documentation

In addition to the firewall adjustments above, if you are using a PC level firewall other than the built-in Windows firewall, you will need to add exceptions to the PC antivirus/antimalware itself to disable security for the Skype for Business client.

If a "Sonic Firewall" or other is being used with "DPI" Deep Packet Inspection, it is recommended to disable this feature for Voice Traffic. All Skype traffic is Encrypted Data traffic and this feature isn't necessary, also it will interfere with Skype/Voice services and cause QOS issues.

If your router is not configured for the new traffic protocols that Skype for Business (Lync) will introduce to your network, you could experience packet loss, dropped calls and jitter. You must make sure that SIP inspection or SIP ALG (Application level gateway) are disabled on your routers and firewalls to prevent this from happening. You may need to contact your ISP to have this done, but make sure this is completed prior to deployment. These features in routers are intended to block SIP traffic and will interfere with Skype for Business (Lync) communications.

While these changes are always required for firewalls, you may need to add exceptions to other security devices that sit between computers and the internet if you have other devices in your network that provide security or the ability to block certain network traffic.

Preferred Traffic Configuration

With the proper bandwidth and internet connection, there is still the probability that an employee internally could be streaming other types of media traffic across your environment that could impact the service quality. To prevent this, CallTower recommends that you prefer the Skype for Business outbound traffic over other traffic from your network.

As this is a setting that would need to be applied to the firewall on the ISP side, it may not always be possible to configure this setting. However, when possible, CallTower recommends that you enable outbound QoS policies on your firewall to prefer traffic destined to the CallTower Skype for Business server IPs over traffic destined for other IPs. By default, Skype for Business Voice takes higher priority over other modalities of the product, so by enabling half of your outbound internet bandwidth to prefer the Skype for Business IPs over other traffic, this will allow Skype for Business Voice to take the highest priority over other forms of media and outbound traffic on your network.

To implement this prioritization of traffic destined for CallTower’s Skype for Business platform, configure your router to give priority access to outbound traffic destined for the

67.213.189.0/24 and 63.128.106.128/26 IP addresses listed above. The configuration on your router will vary depending on the device.

Note: Even with this applied, long sessions may not maintain priority.

QoS/DSCP

CallTower does support QoS and DSCP for our Skype for Business product, however, this only affects traffic on your internal network. If you have multiple sites in your organization that are interconnected, this would be a beneficial policy to apply to make sure that Skype for Business traffic across your network gets the priority it needs. While this doesn’t carry over the internet to the CallTower servers, by applying this internally and applying the preferred traffic policy above to the outbound traffic, you are providing the best chance for your network to successfully handle Skype for Business traffic and other real time protocols.



Skype for Business edition phones (like the Polycom devices CallTower offers) will automatically tag the outbound traffic with DSCP marking 46, giving the Skype for Business (Lync) Voice the highest tag available and highest priority in the network. To get the same policies applied to the PC clients, you will need to push out an Active Directory Group Policy to apply DSCP tags to the voice and other modalities provided within Skype for Business.



For more information on applying these policies for your local PCs, you may reference http://technet.microsoft.com/en-us/library/jj205371.aspx for Microsoft provided information. For the CallTower Skype for Business infrastructure we have specified the following port ranges for these services:



  Audio: 50020:50059 - DSCP value: 46

  Video: 58000:58039 - DSCP value: 34

  • Application Sharing: 42000:42039 - DSCP value: 24
  • File Transfer: 42040:42079 - DSCP value: 14
  • Media Port: 5350:5389 – DSCP value 34
  • SIP signaling: 5060:5069 – DSCP value 40

After applying the policy to the PCs, you will need to enable the DSCP Trust on the internal switches so the tags pass through from site to site. The process for enabling the DSCP Trust application is dependent on the switch model you own. While CallTower can help with certain switch models, you may have to engage your switch provider or search online for settings to enable this on the switches themselves.

Wi-Fi

Corporate Wi-Fi is regularly deployed, and while useful for many enterprise applications, is not the best connectivity for real time VOIP traffic. If you are planning on including an element of Wi-Fi in your Skype for Business deployment, please check through URL below for a list of Microsoft approved WI-Fi devices and vendors. If designed specifically for Real Time VOIP protocols, Wi-Fi could provide a good user experience as well, allowing for mobility within the office for your workers.

Wi-Fi devices and vendors: http://technet.microsoft.com/en-us/office/dn788945.aspx

WAN

There are a few vendors that have been certified for Microsoft Skype for Business for their Network infrastructure. Referencing the information we gathered earlier on network architecture and infrastructure, if you are already utilizing one of the network vendors from the URL below, they will have configuration guidelines and network readiness instruction pertaining directly to Microsoft Skype for Business. If you are looking to upgrade your network in preparation for the pending deployment of CallTower Complete for Skype for Business, we would encourage you to look at these certified vendors for your new network infrastructure. You can access the most current list of vendors at the following URL:

Wired Network and vendors: http://technet.microsoft.com/en-us/office/dn788945.aspx

Using a VPN

One consideration to keep in mind with your Skype for Business deployment is how you currently do business today. VPN is an increasingly common way of allowing remote sites or large corporations to maintain security over their network and data while allowing their workers to access the tools they need to get their jobs done. This, however, is not a recommended method for connecting to a Skype for Business  client.

Skype for Business media stream and signaling are encrypted between client and server. Because a VPN also runs encryption, this would force encrypted Skype for Business  traffic to be re-encrypted through the VPN, then decrypted more than once. This can cause latency and jitter. Additionally, errors in VPN set-up can further complicate the matter for real time traffic protocols from Skype for Business. As such, VPN is not a recommended environment for Skype for Business.

CallTower VoIP Test

The goal of the preceding sections is to confirm that you have an internet connection that will allow your organization to enjoy all the benefits of CallTower's Skype for Business platform. Before and after taking the steps referenced in this document, we invite you to use CallTower's hosted VoIP Test to test your connection to our data center for the key metrics (bandwidth, latency, and jitter).

To use the VoIP Test, visit CallTower's web site or http://www.calltower.com/resources/voip-test. This online testing utility will open a socket connection to your browser and pass connection statistics to CallTower's data center. For best results, run the VoIP Test from the same network on which you will be installing your CallTower IP telephones. To ensure accuracy, the test should be run during peak network traffic periods.

The test will highlight any obvious concerns with your network connection. Share the results with your CallTower contact for further analysis.

Network Readiness Assessment

While many organizations have in house knowledge bases that they can tap to prepare their network for Skype for Business (Lync) deployment, not everyone has the time to do it.

CallTower has a Microsoft certified Network Readiness partner that we can engage to do the work described above for you and make sure your network is ready for CallTower to deploy to your organization. Please speak with your Project Manager or Sales Representative if you would like to learn more about the cost and timelines for this service

Voice VLANs

Traditional deployments of phone systems sometimes place telephones on a separate voice-only VLAN for segmentation and Quality of Service. Skype for Business works very differently by combining audio, video, instant messaging, presence, conferencing and screen sharing and spreading these modalities between a computer running the Skype for Business client and sometimes also IP phones. Given this, CallTower recommends that customers do not implement a separate VLAN for Skype for Business traffic and instead use the existing data VLAN used for existing computers.



When a separate VLAN is used, it must meet the following requirements:

  • Polycom VVX phones are the most common handsets used with Skype for Business. These phones work best for users when paired with the Skype for Business client running on the associated PC. The pairing is accomplished through the Polycom BTOE (Better Together over Ethernet) software running on the PC and connectivity must exist between the phone and the PC. This requires that full routing is enabled between the voice and data VLANs and that ports are opened between them for BTOE communication (UDP port 2081 and TCP port 2480).
  • The voice VLAN requires connectivity to the internet to support DNS lookups, SSL lookups, and calendar integration with Microsoft Exchange.
